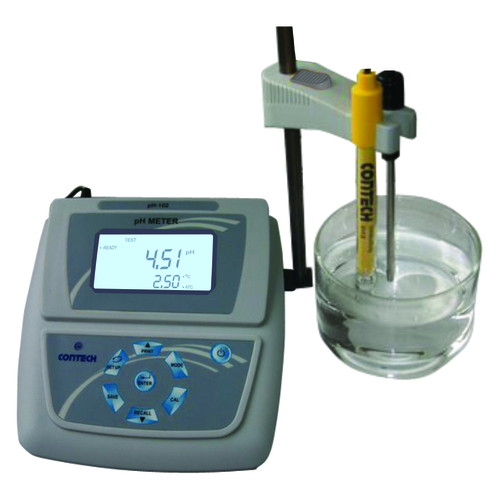

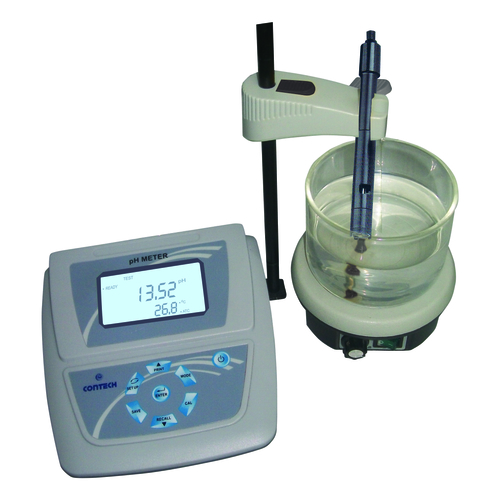

pH / Dissolved Oxygen Meter

Product Description

• 1. pH , mV, DO,  Temperature modes.
• 2. Dissolved oxygen electrode with the salinity measurement feature to achieve automatic salinity & temperature compensation.
• 3. Automatic air pressure correction with the help of air pressure sensor.
• 4. Polarographic type DO electrode offers short polarization time, quick response and precise measurements.
• 5. Automatic or Manual temperature Compensation.
• 6. 3 point pH calibration.
• 7. Buffers selectable from 1.68pH, 4.00pH, 4.01pH, 6.86pH, 7.00pH, 9.18pH, 9.20pH. 10.01pH and 12.45pH
• 8. Automatic buffer recognition.
• 9. Bi directional RS232 interface. Baud rate selectable from 1200,2400,4800 and 9600.
• 10. Single and continuous print out of measuring parameters.
• 11. Multiple Printout types. Combinations selectable from Sr. No., pH, mV, DO, date, time and temperature.
• 12. Real Time Clock.
• 13. Calibration report as per GLP requirements.
• 14. Electrode Slope and mV offset display.
• 15. LCD display with Backlight.
• 16. Memory storage of 100 measurements.

• 17. Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.
• 18. Temperature calibration with respect to solution of  known temperature.

Specifications :

• pH Range: 0-14pH
• mV Range: +/-1999.9mV
• DO Range : 0~40.00mg/L(ppm)
• Temperature Range: -10.0 ~ 110.0^oC
• pH Accuracy : +/-0.02pH
• mV Accuracy: +/-1mV
• DO Accuracy: +/-1%FS
• Temperature Accuracy: +0.4^oC
• ATC pH: 0~100^oC
• ATC DO: 0~45^oC
• pH Electrode : pH combination electrode-EpHG03

• Temperature Electrode: Temperature sensor electrode- ETS01
• DO Electrode : DO electrode-EDO01
• Standard Accessories: Magnetic Stirrer MS-01

• Meter Weight: 700 g
• Power  : 9V/ 500 mA External adaptor
• Operating Temperature : 15~45^oC
• Meter Dimensions (mm): 165 (L) x 190 (D) x 60 (H)
• Meter Weight: 700 g
• Optional Accessories :Magnetic Stirrer MS-01,
• Battery backup unit BBEC-01
• Calibration Standards
