ORP Meter

Product Description

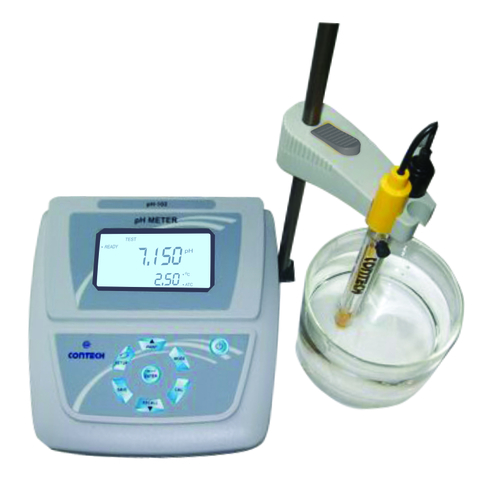

Contech pH/ORP Meter combined with EORP-01 electrode is used for the measurement of pH and oxidation reduction potential (ORP)  in liquids. These ORP meters are mainly used in common solution and waste water testing.

Features :

• 1. pH, Rel.mV and temperature measurement.
• 2. Automatic or manual temperature compensation.
• 3. 3 point pH calibration.
• 4. Buffers selectable from 1.68pH, 4.00pH, 4.01pH, 6.86pH, 7.00pH,  9.18pH, 9.20pH. 10.01pH and 12.45pH
• 5. Automatic buffer recognition.
• 6. Bi directional RS232 interface. Baud rate selectable from 1200, 2400,4800 and 9600.
• 7. Single and continuous print out of pH/Rel.mV.
• 8. Multiple Printout types. Combinations selectable from Sr. No., pH, Rel.mV, Date, time and temperature.
• 9. Real Time Clock. Calibration report as per GLP requirements.
• 10. Electrode Slope display.
• 11. Memory storage of 100 measurements.

• 12. Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.
• 13. Temperature calibration with respect to solution of  known temperature.

Specifications :

• pH Range : 0-14pH
• pH Resolution : 0.01pH
• pH Accuracy : +/-0.02pH
• Temperature compensation : Automatic or Manual

• Temperature range: 0~100^oC
• ORP Range : +/-2000mV
• ORP Resolution : 1mV
• ORP Accuracy : +1mV
• Input Resistance : >1x1012

• Display : Backlight LCD, Character height
• Power : 9V/ 500 mA External adaptor or battery backup unit (Optional)
• Operating Temperature : 15~45^oC
• Meter Dimensions (mm): 165 (L) x 190 (D) x 60 (H)
• Meter Weight : 700 g
• ORP Electrode : ORP Combination Electrode EORP-01, Temperature Electrode ETS01
• Power : 9V/ 500 mA External adaptor
• Operating Temperature : 15~45^oC
• Meter Dimensions (mm): 165 (L) x 190 (D) x 60 (H)
• Meter Weight : 700 g
• Optional Accessories : Magnetic Stirrer MS-01,
• Battery backup unit BBEC-01
• Calibration Standards
