X-ray Gold Testing Detector [Handheld Detectors (Si-Pin / SDD) CGX-104]

Product Description

XRF is used to detect and analyze noble metals like Gold (Au), Silver (Ag), Platinum (Pt), Iridium (Ir), Osmium (Os), Palladium (Pd), Rhodium (Rh), Ruthenium (Ru), Copper (Cu), Zinc (Zn), Nickel (Ni), Cadmium (Cd), Iron (Fe), Cobalt (Co), Indium (In), Tin (Sn), in the Jewellery industry.

Energy Dispersive X-ray Fluorescence (EDXRF) technique relies on the detector and the detection circuit capacity to resolve spectral peaks due to different energy X-Rays emitted when a primary X-Ray beam strikes a metal alloy corresponding to different elements in the sample, intensity of the spectrum radiation proportional to the concentration of element. The spectrum is then processed through the powerful computer software which calculates and reports the various elements & their composition in the sample.

XRF Gold Purity Tester consists of x-Ray tube, high voltage power supply for X-Ray source, X-Ray tube filters, X-Ray fluorescence Detecto, processing electronics and system interface & an external computer.  A camera is incorporated in the system to view the sample on the computer screen.

Handheld X-ray analyze works on a rechargeable 7.2V Li-ion battery with a backup period of 8 hours under normal use.

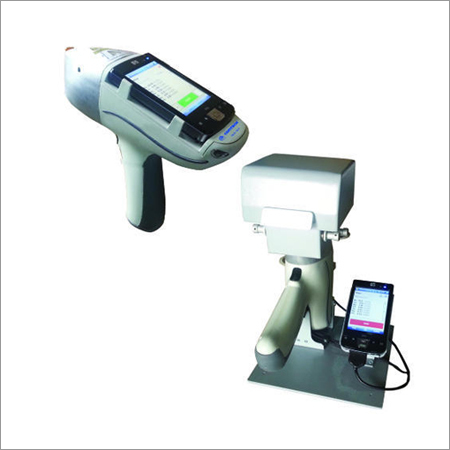

XRF analyzer has a detectable range from Ti to U. CGX-104 operates under control of the HP iPAQ PDA with 4 inch high resolution touch-screen display. The optional lab stand allows using of handheld analyzer as a tabletop instrument under PC or laptop control.

Specifications :

XRF is a reference technique, hence standards are required for quantitative results. Standards are analyzed, Spectral intensities generated are used to obtain a intensity v/s concentration plot for calibration. This calibration is used to evaluate the spectral intensities of unknown samples.

How to get best results from XRF Spectrometer :

XRF is a reference technique, hence standards are required for quantitative results. Standards are analyzed, spectral intensities generated are used to obtain a intensity v/s concentration plot for calibration. This calibration is used to evaluate the spectral intensities of unknown samples.

How to get best results from XRF Spectrometer :
