Precision Balances

Product Description

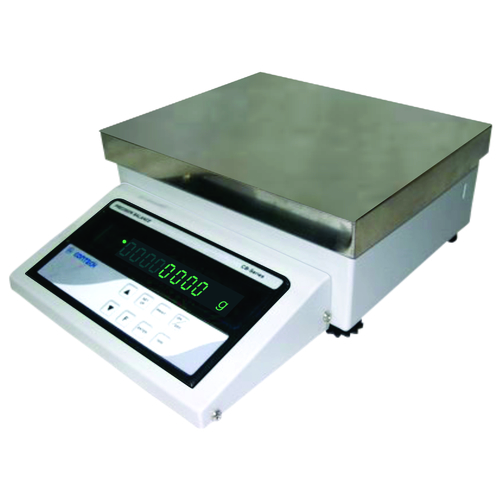

Precision Balances

Contech High Precision Balances incorporate advanced Electro Magnetic Force Compensation (EMFC) technology for offering unmatched accuracy and reliability, coupled with unique ADC circuit with inbuilt temperature compensation to offer a very high stability upto a resolution of 6 million counts. All adjustable parameters are programmable to take care of any minor mismatch of different sub assemblies & Balances are configured with these parameters.

Standard Features :-

Backlite LCD  Display.

Customized, large, attractive LCD with multiparameter display illuminated by white backlite.

Bi Directional RS232 intrface

RS232 port with selectable baud rate 4800,9600. Various interface formats adopting this Balance in a setup to replace any other leading

international brand Balance. Can be configured for an USB interface using optional RS232 to USB converter.

GSM function

GSM function for paper & cloth quality checking.

Multiple Weighing Units

Grams, Ounces, Troy Ounces, Carats, Mommes, Pennyweights, Grains, tola, Mesghal, Chines taels.

Percentage Weighing

Display of Reference weight, sample weight, % of sample with respect to reference weight.

Piece Counting

Parts calibratin using preset quantity of samples or programmable quantity. Automatic count correction for precise calibratiion.

Fill Mode

1 set point - Indication when sample weight exceeds the set limit.

2 set point - Indication when the sample weight is between the lower & upper limits.

Accumulation

Storage of maximum 200 samples.

Multiple Printing  Mode

0,1,2,3 modes for various formats. Pause in case data storage capacity in a Printer is less.

External Calibration

Using preset weights. Known weights can be corrected to +/- 15 counts.

Response Time :

User selectable - Slow / Normal / Fast.

Stability Band Width

Stability Indicator appeats on display with counts variation +/-1, +/-2, +/-3, +/-4.

Auto Zero Tracking

User selectable 0,1,2,3

Return to zero Tracking

Variable : 0,1,2,3

Display Updation

Speed setting : Fast / Normal.

Optional Features :

• 1. RS232 to USB interface converter.
• 2. ISO GLP compliance.
• 3. Real time clock (RTC).
• 4. Density determination kit.
• 5. Weigh below hook for density determination.
• 6. Yarn count with temperature compensation.
• 7. Denier measurement for silk & synthetic yarn.
• 8. Cocoon assessment with statistical analysis for cocoons.
• 9. Software for SQC (Statistical Quality Control) for Pharmaceutical Industries.
• 10. Vacuum fluorescent display (VFD)
•


Specifications :

• Taring Range : Up to full capacity
• Response time : 3-5 seconds
• Power Req : 90-250V, 50/60Hz, 10 Watt
• Operating Temperature : 10 to 45^oC
