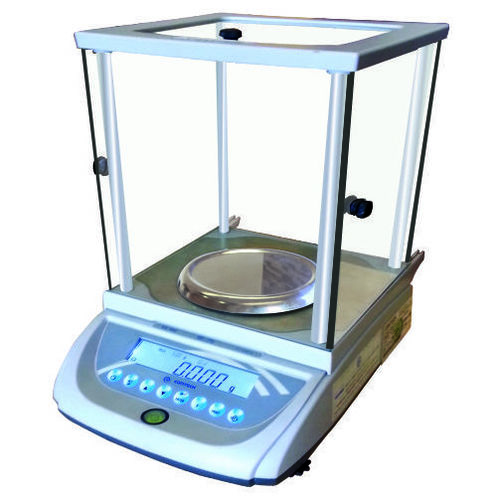

Top Loading Analytical Balances

Name: Top Loading Analytical Balances
Brand: CONTECH INSTRUMENTS LTD.
Price: 10000 INR
Availability: InStock

Price 10000 INR/ Unit

Get a Price/Quote

Top Loading Analytical Balances Specification

Product Type
Laboratory Balance

Weighing Scale Type
Laboratory Balance

Material
Other

Power Supply
-

Monitor Display
LCD

Accuracy
0.001g - 220g gm

Capacity Range
220g Gram (g)

Color
-

Warranty
-

Top Loading Analytical Balances Trade Information

Minimum Order Quantity
50 Units

FOB Port
JNPT Navi Mumbai

Payment Terms
Others

Supply Ability
10 Units Per Week

Delivery Time
2 Week

Packaging Details
Export Quality Packing

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
ISO, CE

About Top Loading Analytical Balances

Top Loading Analytical Balances

Contech High Precision Balances incorporate advanced Electro Magnetic Force Compensation (EMFC) technology for offering unmatched accuracy and reliability, coupled with unique ADC circuit with inbuilt temperature compensation to offer a very high stability upto a resolution of 6 million counts. All adjustment parameters are programmable to take care of any minor mismatch of different sub assemblies & Balances are configured with these parameters.

Backlite LCD Display-Customized, large, attractive LCD with multi parameter display illuminated by white backlite.
Bi directional RS 232 interface-RS 232 port with selectable baud rate 4800,9600. Various interface formats adopting this Balance in a setup to replace any other leading international brand Balance. Can be configured for an USB interface using optional RS 232 to USB converter.
GSM function-GSM function for paper & cloth quality checking.
Multiple Weighing Units-Grams, Ounces, Troy Ounces, Carats, Mommes, Pennyweights, Grains, tola, Mesghal, Chinese taels.
Percentage Weighing-Display of Reference weight, sample weight, % of sample with respect to reference weight
Piece Counting-Parts calibration using preset quantity of samples or programmable quantity. Automatic count correction for precise calibration.
Fill Mode

1 set point - Indication when sample weight exceeds the set limit.
2 set points Indication when the sample weight is between the lower & upper limits.

Accumulation-Storage of maximum 200 samples.
Multiple Printing Mode-0,1,2,3 modes for various formats. Pause in case data storage capacity in a Printer is less.
External Calibration

Using preset weights.
Known weights can be corrected to + 15 counts.

Response Time:User selectable Slow / Normal /Fast.
Stability Band Width- Stability indicator appears on display with counts variation + 1, + 2, +3, + 4.
Auto Zero Tracking-User selectable 0,1,2,3
Return to Zero Tracking- Variable: 0,1,2,3,4
Display Updation-Speed setting : Fast / Normal.

Optional Features :

RS 232 to USB interface converter.
ISO GLP compliance.
Real time clock (RTC).
Density determination kit.
Weigh below hook for density determination.
Yarn count with temperature compensation.
Denier measurement for silk & synthetic yarn.
Cocoon assessment with statistical analysis for cocoons.
Software for SQC (Statistical Quality Control) for Pharmaceutical Industries.
Vacuum fluorescent display (VFD.

Specifications :

Taring Range : Up to full capacity
Response time : 3-5 seconds
Power Req : 90-250V, 50/60Hz, 10 Watt
Operating Temperature : 10 to 45^oC

Specifications :High Precision Balances without motorized internal calibration

MODELS	CAH-53	CAH-123	CAH-223	CAH-323	CAH-413	CAH-503	CAH-603	CAH-803
CAPACITY	50g	120g	220g	320g	410g	500g	600g	800g
READABILITY	0.001 g	0.001 g	0.001 g	0.001g	0.001g	0.001g	0.001 g	0.001 g
REPEATABILITY (+/-)	0.001 g	0.001 g	0.001 g	0.001g	0.001g	0.002g	0.002 g	0.002 g
LINEARITY (+/-)	0.001 g	0.001 g	0.002 g	0.002g	0.002g	0.002g	0.003 g	0.004 g
PAN SIZE	100mm	100mm	100mm	100mm	100mm	100mm	125mm	125mm
