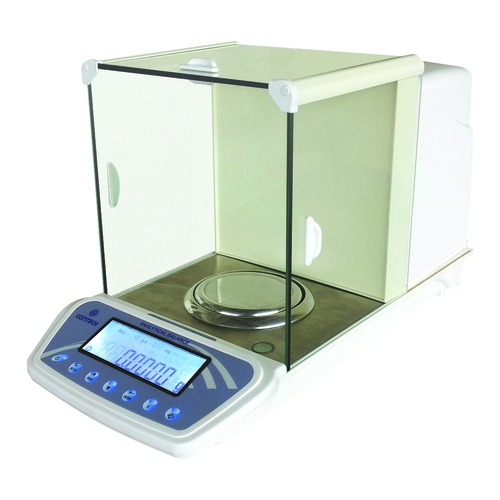

Indirect Loading Analytical / Semi Micro Balances

Product Description

Contech High Precision Balances incorporate advanced Electro Magnetic force Compensation (EMFC) technology for offering unmatched accuracy and reliability, coupled with unique ADC circuit with inbuilt temperature compensation to offer a very high stability upto a resolution of 6 million counts. All adjustment parameters are programmable to take care of any minor mismatch of different sub assemblies & Balances are configured with these parameters.

Standard Features:

Backlite LCD Display

Customized, large, attractive LCD with multiparameter display illuminated by white backlite.

Bi directional RS232 interface

RS232 port with selectable baud rate 4800,9600. Various interface formats adopting this Balance in a setup to replace any other leading

international brand Balance. Can be configured for an USB interface using optional RS 232 to USB converter.

GSM Function

GSM function for paper & cloth quality checking.

Multiple Weighing Units

Grams, Ounces, Troy Ounces, Carats, Mommes, Pennyweights, Grains, tola, Mesghat, Chinese taels.

Percentage Weighing

Display of Reference weight, sample weight, % of sample with respect of reference weight.

Piece Counting

Parts calibration using preset quantity of sample or programmable quantity. Automatic count correction for precise calibration.

Fill Mode

1 set point - Indication when sample weight exceeds the set limit.

2 set point - Indication when the sample weight is between the lower & upper limits.

Accumulation

Storage of Maximum 200 samples.

Multiple Printing Mode

0,1,2,3 modes for various formats. Pause in case data storage capacity in a printer is less.

External calibration

Using Preset Weight. Known weights can be corrected to +/- 15 counts.

Response Time :

User selectable - Slow / Normal / Fast.

Stability Band Width

Stability Indicator appears on display with counts variation +/- 1, +/-2, +/-3,+/-4.

Auto Zero Tracking

User selectable 0,1,2,3.

Return to Zero Tracking

Variable : 0,1,2,3,4

Display Updation

Speed setting : Fast / Normal

Features :

1. Multiple weighing units.

2. Standard bi-directional Rs-232 interface.

3. Polyfunction : % weighing, counting, fill mode, GSM etc.

4. Backlite LCD Display.

5. USB interface (optional).

6. Motorized internal calibration (Optional)

7. ISO GLP compliance (Optional).

8. Real time clock (RTC) (Optional).

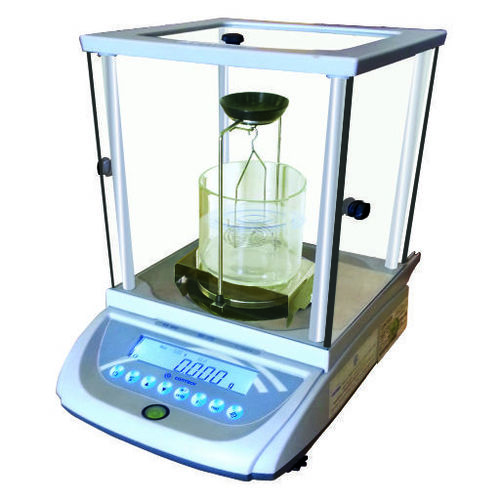

9. Density determination kit (Optional).

10. Weigh below hook for density determination (Optional).

11. Yarn count with temperature compensation (Optional).

12. Denier measurement for silk & synthetic yarn (Optional).

13. Cocoon assessment with statistical analysis for cocoons (Optional).

14. Software for SQC (Statistical Quality Control) for Pharmaceutical Industries(Optional).

Specifications :

Taring Range : Up to full capacity

Response time : 3-5 seconds

Power Req : 90/250V, 50/60Hz, 10Watt

Operating Temperature : 10 to 45oC

Indirect Loading Analytical / Semi Micro Balances without motorized internal calibration

The balance is supplied with Breeze shield as standard.

Specifications :
Indirect Loading Analytical / Semi Micro Balances with motorized internal calibration

The balance is supplied with Breeze shield & Internal Motorized calibration as standard.
