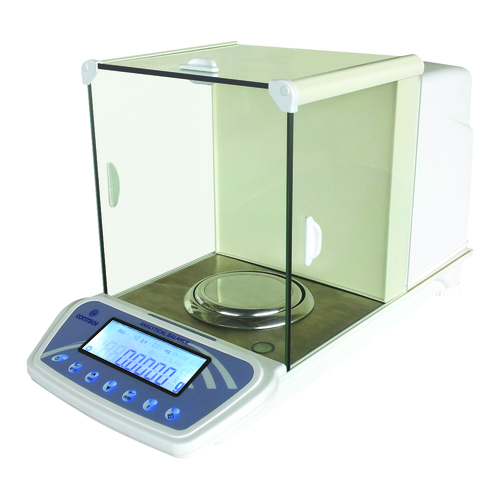

Analytical Balance With Inbuilt Calibration

Product Description

Contech High Precision Balances incorporate advanced Electro Magnetic Force Compensation (EMFC) technology for offering unmatched accuracy and reliability, coupled with unique ADC circuit with inbuilt temperature compensation to offer a very high stability upto a resolution of 6 million counts. All adjustment parameters are programmable to take care of any minor mismatch of different sub assemblies & Balances are configured with these parameters.

Standard Features :

Backlite LCD Display

Customized, large, attractive LCD with Multi parameter display illuminated by white backlite.

Bi directional RS 232 interface

RS-232 port with selectable baud rate 4899,9600. Various interface formats adopting this Balance in a setup to replace any other leading international brand balance. Can be configured for an USB interface using optional RS 232 to USB converter.

GSM function

GSM function for paper & cloth quality checking.

Multiple Weighing Units

Grams, Ounces, Troy Ounces, Carats, Mommes, Pennyweights, Grains, tola, Mesghal, Chinese taels.

Percentage Weighing

Display of Reference weight, sample weight, % of sample with respect to reference weight.

Piece Counting

Parts calibration using preset quantity of samples or programmable quantity. Automatic count correction for precise calibration.

Fill Mode

1 set point - Indication when sample weight exceeds the set limit.

2 set points - Indication when the sample weight is netween the lower & upper limits.

Accumulation

Storage of maximum 200 samples.

Multiple Printing Mode

0,1,2,3 modes for various formats. pause in case data storage capacity in a Printer is less.

External Calibration

Using preset weights.

Known weight can be corrected to +/- 15 counts.

Response Time :

User selectable - slow/Normal/Fast.

Stability Band Width

Stability indicator appears on display with counts variation +/-1, +/-2, +/-3, +/-4.

Auto Zero Tracking

User selectable 0,1,2,3

Return to zero Tracking

Variable : 0,1,2,3

Display Updation

Speed setting : Fast / Normal

Optional Features :

• Motorized internal calibration.
• RS-232 to USB interface.

• ISO GLP compliance.
• Real time clock (RTC).
• Density determination kit.
• Weigh below hook for density determination.
• Yarn count with temperature compensation.
• Denier measurement for silk & synthetic yarn.
• Cocoon assessment with statistical analysis for cocoons.
• Software for SQC (Statistical Quality Control) for Pharmaceutical industries.

Specifications :

• Taring Range : Up to full capacity
• Response Time : 3-5 seconds
• Power Req : 90-250V, 50/60Hz, 10 watt
• Operating Temperature : 10 to 45 deg C
