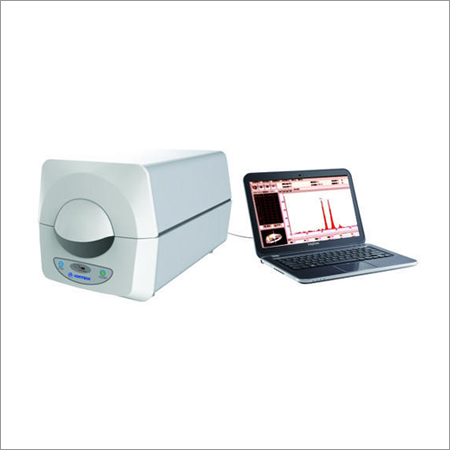

Silicon - Pin XRF Detector CGX-102
Product Details:
- Product Type XRF Fluorescence Spectrometer
- Usage For Hall marking centers, Testing centers, Gold Refineries, Manufacturing Units, etc.
- Weight 12 Kilograms (kg)
- Power Supply 90-240V AC, 50/60Hz
- Temperature 15-25 Celsius (oC)
- Machine Weight 12 Kilograms (kg)
- Test Speed -
- Click to View more
X
Silicon - Pin XRF Detector CGX-102 Price And Quantity
- 50 Unit
Silicon - Pin XRF Detector CGX-102 Product Specifications
- For Hall marking centers, Testing centers, Gold Refineries, Manufacturing Units, etc.
- XRF Fluorescence Spectrometer
- -
- 12 Kilograms (kg)
- 90-240V AC, 50/60Hz
- 12 Kilograms (kg)
- 15-25 Celsius (oC)
Silicon - Pin XRF Detector CGX-102 Trade Information
- JNPT Navi Mumbai
- Others
- 5 Unit Per Week
- 2 Week
- Contact us for information regarding our sample policy
- Export Quality Packing
- Asia
- All India
- ISO,CE
Product Description
X-Ray Fluorescence Spectrometers-Silicon - Pin XRF Detector CGX-102
XRF is used to detect and analyze noble metals like Gold (Au), Silver (Ag), Platinum (Pt), iridium (Ir), Osmium (Os), Palladium (Pd), Rhodium (Rh), Ruthenium (Ru), Copper (Cu), Zinc (Zn), Nickel (Ni), Cadmium (Cd), Iron(Fe), Cobalt (Co), Indium (In), Tin (Sn), in the jewellery Industries.
Energy Dispersive X-ray Fluorescence (EDXRF) technique relies on the detector and the detection circuit capability to resolve spectral peaks due to different energy X-Rays emitted when q primary X-ray beam strikes a metal alloy corresponding to different elements in the sample, intensity of the spectrum radiation proportional to the concentration of element. The spectrum is then processed through the powerful computer software which calculate and reports the various elements & their composition in the sample.
XRF Gold Purity Tester consists of X-Ray tube, high voltage power supply for X-ray source, X-ray tube filters, X-ray fluorescence Detector, processing electronics and system interface & an external computer. A camera is incorporated in the system to view the sample on the computer screen.
Specifications :
| Detectable elements | Titanium to Uranium |
| Measurement Results | Iron (Fe), Cobalt (Co), Nickel (Ni), Copper (Cu), Zinc (Zn), Ruthenium (Ru), Rhodium (Rh), Palladium (Pd), Silver (Ag), Cadmium( Cd), Indium (In), Tin (Sn), Osmium (Os), Iradium (IR), Platinum (Pt), Gold (Au) -all metals separately. |
| Accuracy of measurement | +/-0.15% (Molten Metal above 90% Au) +/-0.3% (Molten Metal below 90% Au) +/-0.5% (Molten Metal below 50% Au) |
| Sensor | Silicon-Pin Diode (Silicon Drift Semiconductor or CGX-103) |
| Cooling of Detector | Thermoelectric |
| Detection Range | 1%-----99.99% |
| Testing Time | 30-----200 secs |
| Test Spot Area | 0.5mm |
| Power Supply | 90-240V AC, 50-60Hz |
| Power Rating | 30 Watt |
| Temperature Range | 15-25oC |
| Relative humidity | <70% |
| Operation atmosphere | Vibration free surface and air conditioned room. |
| Interface for Computer | Inbuilt (External Computer required). |
| Software for Operation | Menu Driven User Friendly Operating System. |
| Dimensions Length | 335mm |
| of Instrument Height | 210mm(with test compartment cover in closed position) & 565mm (in open position) |
| Width | 225mm |
| Dimensions of Sample Chamber | |
| Length | 235mm |
| Height | 80mm |
| Width | 195mm |
| Net Weight | 12kg |
