Moisture Analyzer

About Moisture Analyzer

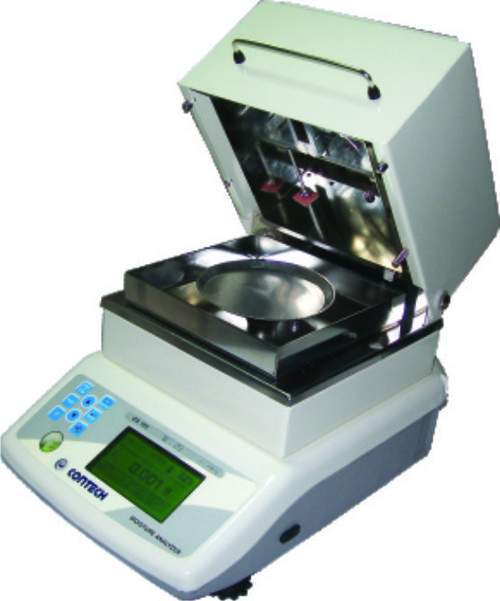

Contech Moisture Balance incorporate rapid Halogen heating with EMFC precision weighing technology to determine moisture content of sample quickly & effectively.

• 1. Easy & Fast Moisture Determination.
• 2. 3 type of Testing Methods : Manual, Time Programmable, Automatic.
• 3. Weighing based on EMFC technique.
• 4. Heating by infrared halogen tube heater.
• 5. Temperature range upto 200oC (1oC).
• 6. Moisture range : 0.1% to 100%
• 7. Moisture measurement :
• Unit - % wet base
• % dry base
• dry weight
• % dry to wet weight
• 8. Display of time, temperature, weight & percentage moisture.
• 9. Graphical Backlite LCD for displaying weight, setup parameters, testing parameters & results.

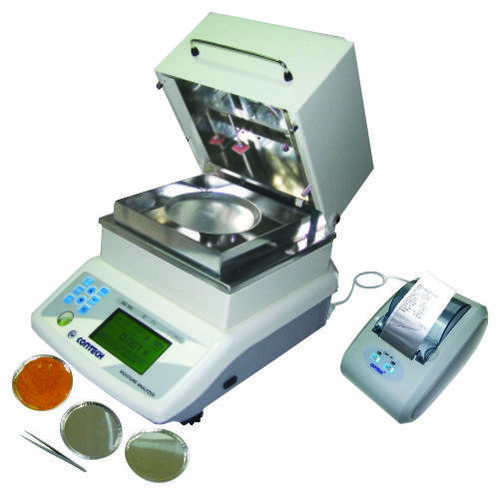

• 10. RS232 interface for connecting to a computer / printer.
• 11. Data storage upto 50 tests.
• 12. Programmable memory.
• 13. Time based moisture loss on the graphical display.
• 14. Study of pattern of moisture loss by printing/display on computer screen of online data - elapsed time, present sample weight and percentage moisture loss. Elapsed time interval can be programmed - 10,20,30,60 & 120 seconds.

Different type of Model available :

Specifications :

Moisture Content :

• Accuracy : 0.1% for sample above 5g
• (std. dev.) 0.5% for sample below 5g
• Resolution : 0.1%
• Taring Range : Up to full capacity
• Response time : 4 to 6 secs
• Display : Backlite LCD
• Power Req : 90-250V, 50/60Hz, 550 Watt
• Operating Temperature : 10 to 45 deg C.
