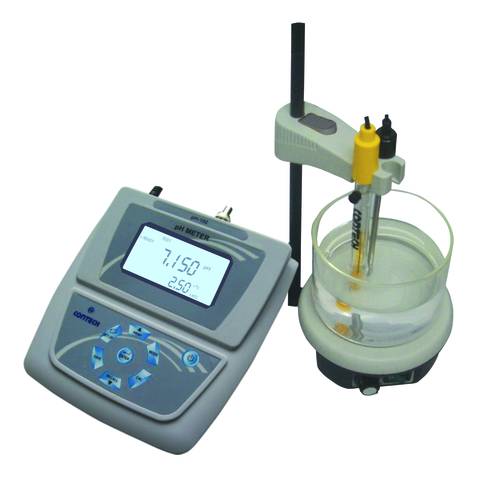

Multiparameter Meter

Multiparameter Meter
Multiparameter Meter
Send Inquiry
Product Code : 01
Product Description
Salient Features :
  • pH , mV, Conductivity, Resistivity, TDS, Salinity, DO, Ion Concentration,
  • Temperature modes.
  • Automatic or Manual temperature Compensation.
  • 3 point pH calibration.
  • Buffers selectable from 1.68pH, 4.00pH, 4.01pH, 6.86pH, 7.00pH, 9.18pH,
  • 9.20pH. 10.01pH and 12.45pH
  • Automatic buffer recognition.
  • 1 point conductivity calibration for the entire range.
  • Dissolved oxygen electrode with the salinity measurement feature to achieve automatic salinity & temperature compensation.
  • Automatic air pressure compensation for DO with the help of air pressure sensor.
  • Polarographic type DO electrode offers short polarization time, quick response and precise measurements.
  • Bi directional RS232 interface. Baud rate selectable from
  • 1200,2400,4800 and 9600.
  • Single and continuous print out of measuring parameters.
  • Multiple Printout types. Combinations selectable from Sr. No., pH, mV, conductivity, TDS, Salinity, DO, Ion Concentration, Date, time and temperature..
  • Real Time Clock.
  • Calibration report as per GLP requirements.
  • Electrode Slope and mV offset display.
  • LCD display with Backlight.
  • Memory storage of 100 measurements.
  • Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.

Specification :


pH

mV

Conductivity

Resistivity

TDS

Salinity

DO

Temp

Range

-2.0000~
19.999pH

+1999.9mV

Conductivity :
0~2000mS/cm spread
into 6 ranges
0.00~20.00µS/cm,
20.0~200.0 µS/cm,
200~2000 µS/cm
2.00~20.00mS/cm,
20.0~200.0 mS/cm,
200~2000mS/cm(K=10)

0~100MΩcm

0~100g/L

0~100ppt
0~200.0%


0~40.00mg/L(ppm),

-10.0 ~ 110.0oC

Accuracy

+0.002pH

+0.5mV

+0.5% FS




+0.10 mg/L

+0.4oC

ATC

0~100oC

0~100oC

0~50oC

0~50oC

0~50oC

0~50oC

0~45oC

+0.4oC

Electrode

EpHG03

EpHG03

ECNG01

ECNG01

ECNG01

ECNG01

EDO01

ETS01

Other Details :

  • Power : 9V/ 500 mA External adaptor
  • Operating Temperature : 15~45oC
  • Meter Dimensions (mm) : 165 (L) x 190 (D) x 60 (H)
  • Meter Weight : 700 g
  • Optional Accessories : Magnetic Stirrer MS-01,Battery backup unit BBEC-01 Calibration Standards
