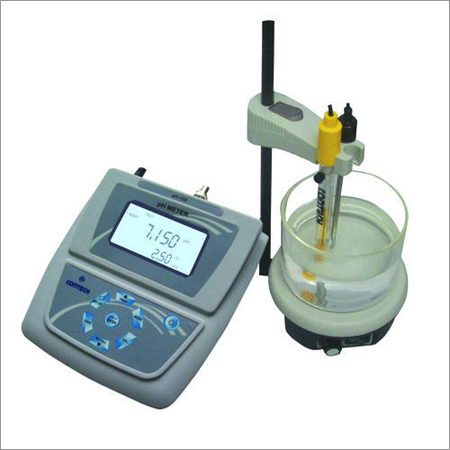

Multiparameter Meter

Multiparameter Meter
Multiparameter Meter
Product Code : 20
Product Description

To match up with the ever growing needs and requirements of the industry, we are offering optimum quality Multiparameter Meter to our clients. Under the proper supervision of our deft professionals, this meter is precisely manufactured with the optimum quality components and advanced techniques. Offered multimeter is used in research center for measuring the pH value of chemical substances. As per the defined requirement of our customers, we provide this Multiparameter Meter in different specifications at a reasonable price.

Features:

  • Result accuracy
  • Optimum performance
  • Strong construction
  • Excellent functionality

Salient Features :

  • pH , mV, Conductivity, Resistivity, TDS, Salinity, DO, Ion Concentration,
  • Temperature modes.
  • Automatic or Manual temperature Compensation.
  • 3 point pH calibration.
  • Buffers selectable from 1.68pH, 4.00pH, 4.01pH, 6.86pH, 7.00pH, 9.18pH,
  • 9.20pH. 10.01pH and 12.45pH
  • Automatic buffer recognition.
  • 1 point conductivity calibration for the entire range.
  • Dissolved oxygen electrode with the salinity measurement feature to achieve automatic salinity & temperature compensation.
  • Automatic air pressure compensation for DO with the help of air pressure sensor.
  • Polarographic type DO electrode offers short polarization time, quick response and precise measurements.
  • Bi directional RS232 interface. Baud rate selectable from
  • 1200,2400,4800 and 9600.
  • Single and continuous print out of measuring parameters.
  • Multiple Printout types. Combinations selectable from Sr. No., pH, mV, conductivity, TDS, Salinity, DO, Ion Concentration, Date, time and temperature..
  • Real Time Clock.
  • Calibration report as per GLP requirements.
  • Electrode Slope and mV offset display.
  • LCD display with Backlight.
  • Memory storage of 100 measurements.
  • Data logging facility up to 500 results. Data logging interval selectable from 5S, 10S, 20S, 30S, 1M, 2M and 5M.

Specification :


pH

mV

Conductivity

Resistivity

TDS

Salinity

DO

Temp

Range

-2.0000~
19.999pH

+1999.9mV

Conductivity :
0~2000mS/cm spread
into 6 ranges
0.00~20.00µS/cm,
20.0~200.0 µS/cm,
200~2000 µS/cm
2.00~20.00mS/cm,
20.0~200.0 mS/cm,
200~2000mS/cm(K=10)

0~100MΩcm

0~100g/L

0~100ppt
0~200.0%


0~40.00mg/L(ppm),

-10.0 ~ 110.0oC

Accuracy

+0.002pH

+0.5mV

+0.5% FS




+0.10 mg/L

+0.4oC

ATC

0~100oC

0~100oC

0~50oC

0~50oC

0~50oC

0~50oC

0~45oC

+0.4oC

Electrode

EpHG03

EpHG03

ECNG01

ECNG01

ECNG01

ECNG01

EDO01

ETS01

Other Details :

  • Power : 9V/ 500 mA External adaptor
  • Operating Temperature : 15~45oC
  • Meter Dimensions (mm) : 165 (L) x 190 (D) x 60 (H)
  • Meter Weight : 700 g

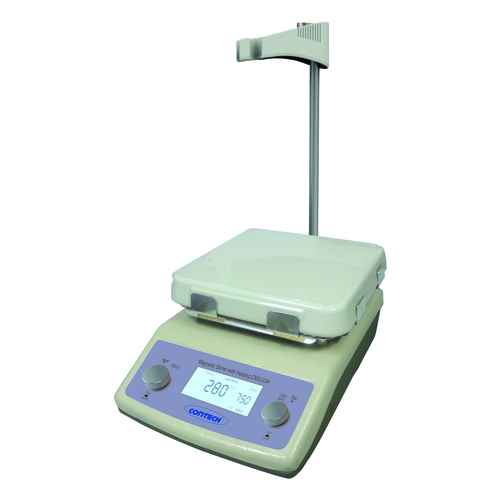

  • Optional Accessories : Magnetic Stirrer MS-01,Battery backup unit BBEC-01 Calibration Standards
